Removal And Installation

REMOVAL

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Recover the refrigerant from the refrigerant system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .
  3. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .

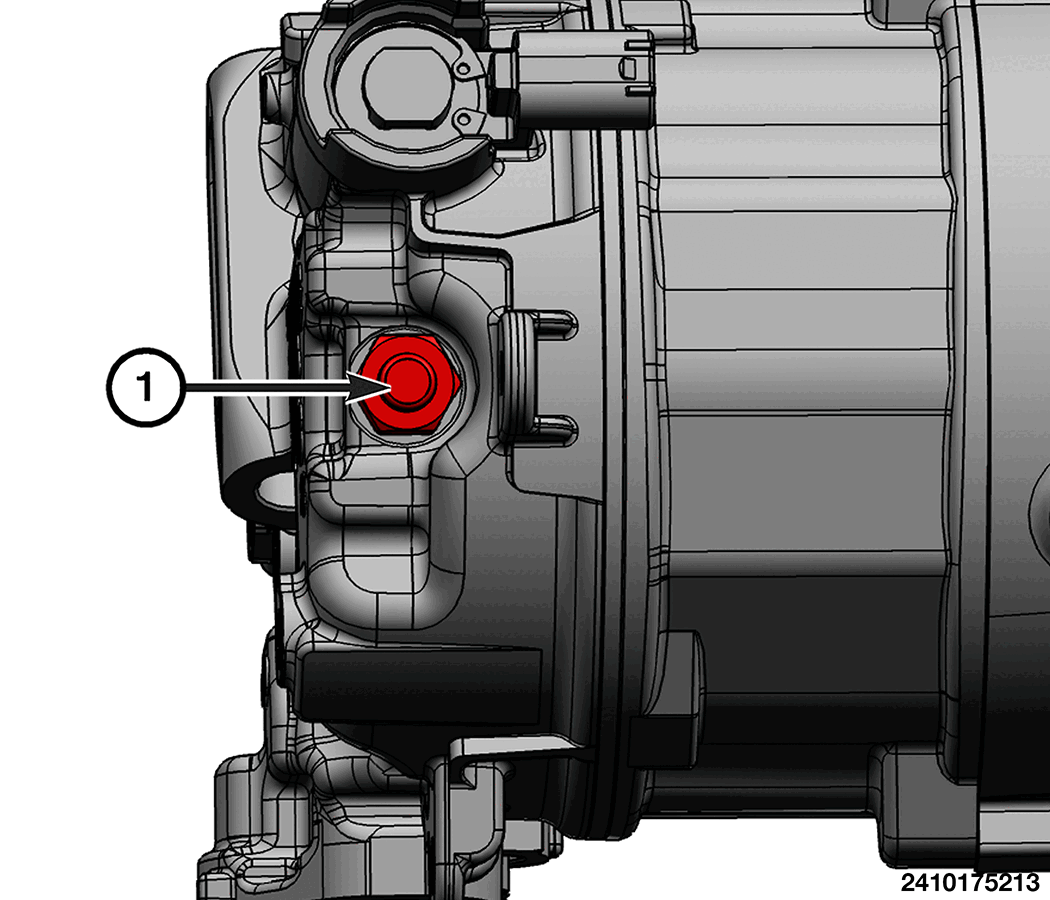

    GC0200232Courtesy of CHRYSLER GROUP, LLC
  4. Remove the A/C compressor control valve (1) from the A/C compressor.

INSTALLATION

  1. Install the A/C compressor control valve to the A/C compressor and tighten securely.
  2. Install the engine belly pan. Refer to INSTALLATION .
  3. Evacuate the refrigerant system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .
  4. Charge the refrigerant system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
