Removal And Installation: Removal

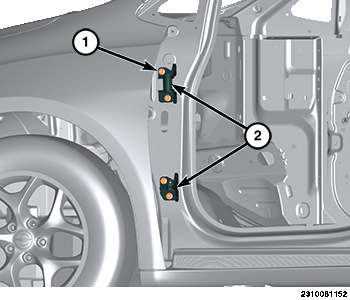

GC0177883Courtesy of CHRYSLER GROUP, LLC
  1. Remove the door from the vehicle. Refer to DOOR, REMOVAL AND INSTALLATION .
  2. Mark the upper or lower hinge (2) location on the outside of the lower A-pillar to aid installation.
  3. Remove the fasteners (1) that secure the hinge to the outside of the lower A-pillar.
  4. Remove the hinge from the A-pillar.
