Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

LH shown in illustration, RH typical.

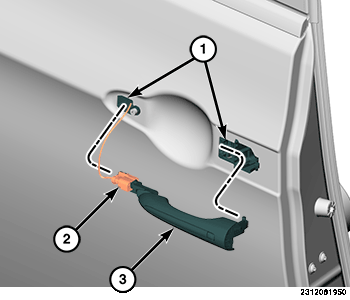

Connect the wire harness connector (2) and position the handle (3) to the door.
Slide handle (3) in and forward.

Courtesy of CHRYSLER GROUP, LLC

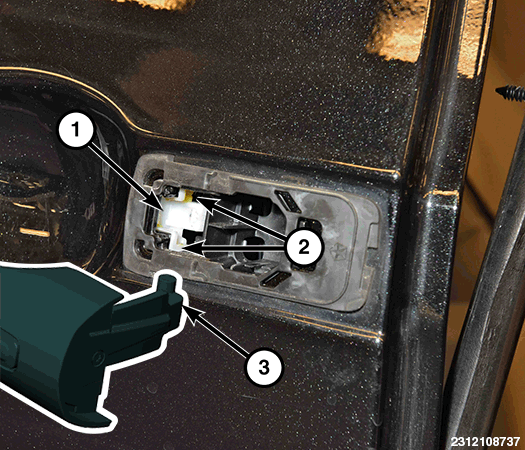

Verify that the bell crank (1) is in the correct position.
Position the door handle pin (3) into bell crank handle fastener (2) and slide rearward

Courtesy of CHRYSLER GROUP, LLC

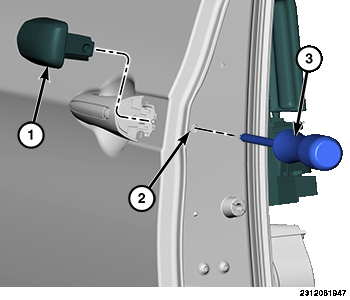

Position the door handle trim cap (1) to the front door.
Holding door handle and end cap, tighten Torx screw until door handle retracts into the door panel and screw stops turning.

Courtesy of CHRYSLER GROUP, LLC

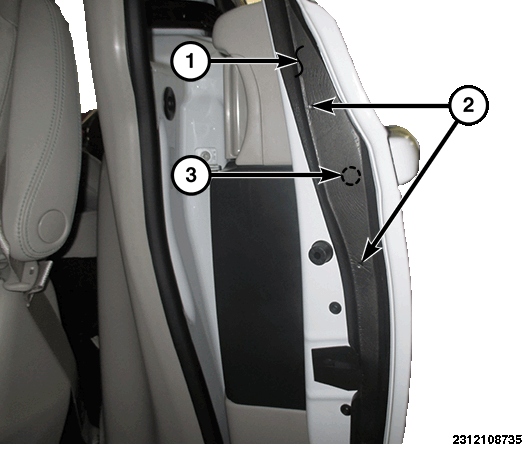

Position the door seal (1) back into place and seat the push pin fasteners (2) fully.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
