Removal And Installation: Removal
- Open sliding door to the full open position.
- Support sliding door on a suitable lifting device.
- Mark outline of the center hinge (2) on the inner door panel to aid installation.
- Remove the bolts (1) attaching the center hinge to the sliding door.
- Remove the fasteners (1) and separate the hinge from the rollers.

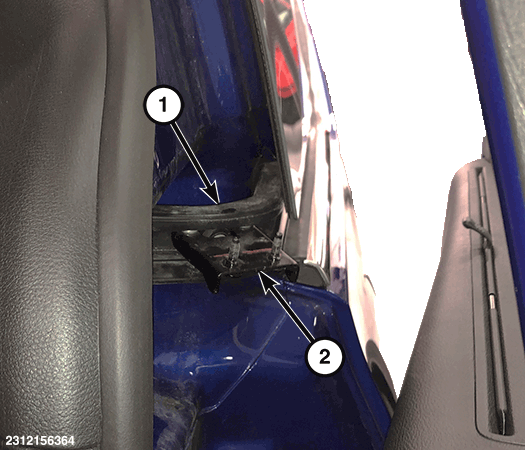

- Roll the center roller assembly (1) to front of the roller channel.
- Position the roller assembly (1) at the curve of the channel (2).
- Rotate the roller assembly (1) up and remove from the channel.
