Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Raise and support the vehicle.
- Remove the right front wheel and tire assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

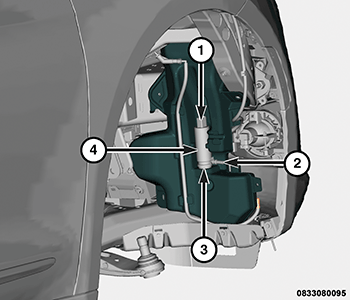

- Drain washer fluid from the reservoir and into a suitable clean container. This can be done by disconnecting the headlamp washer hose from the headlamp washer pump and allowing the washer fluid to drain into a container through a temporary jumper hose connected to the pump output nipple (2).
- Disconnect the engine compartment wiring harness connector from the headlamp washer pump receptacle (1).
- Remove the headlamp washer pump (4) from the reservoir by pulling the pump up and away from the reservoir cavity and out of the mounting grommet (3). Do not damage the reservoir/pump sealing surface or puncture the reservoir during removal.
- Remove the pump grommet (3) and discard.
