Removal And Installation: Installation

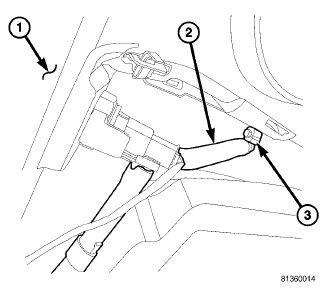

GC0095361Courtesy of CHRYSLER GROUP, LLC
  1. Install the headlamp washer to the front fascia (1).
  2. Attach the washer hose (2) to the headlamp washer fitting (3).
  3. Install the front fascia (1). Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
