Removal And Installation: Installation

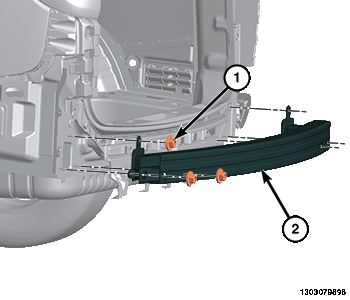

GC0178162Courtesy of CHRYSLER GROUP, LLC
  1. Install the bumper reinforcement (2) onto the back of the vehicle and install the nuts (1).
  2. Tighten the nuts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .
