Removal And Installation: Removal

GC0177732Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL AND INSTALLATION .

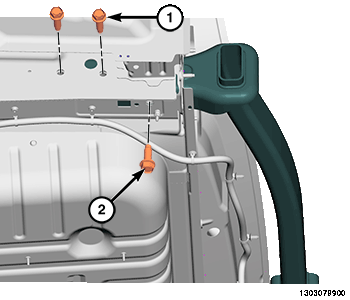

  2. Remove the side bolts (1) and the bottom bolts (2).
    GC0178163Courtesy of CHRYSLER GROUP, LLC

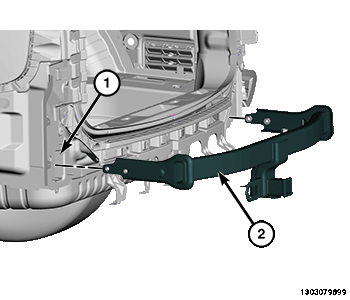

  3. Remove the hitch assembly (2) from the frame rails (1).
