Removal And Installation: Installation

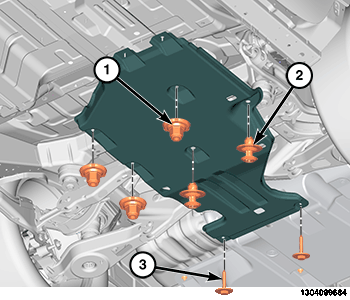

GC0178038Courtesy of CHRYSLER GROUP, LLC
  1. Install the rear suspension belly pan and install the push pin fasteners (2).
  2. Install the rear screws (3).
  3. Install the nuts (1) and tighten all the fasteners to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the side belly pan. Refer to BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
