Removal And Installation

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Install the tire and wheel assembly. Refer to ALUMINUM WHEEL INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

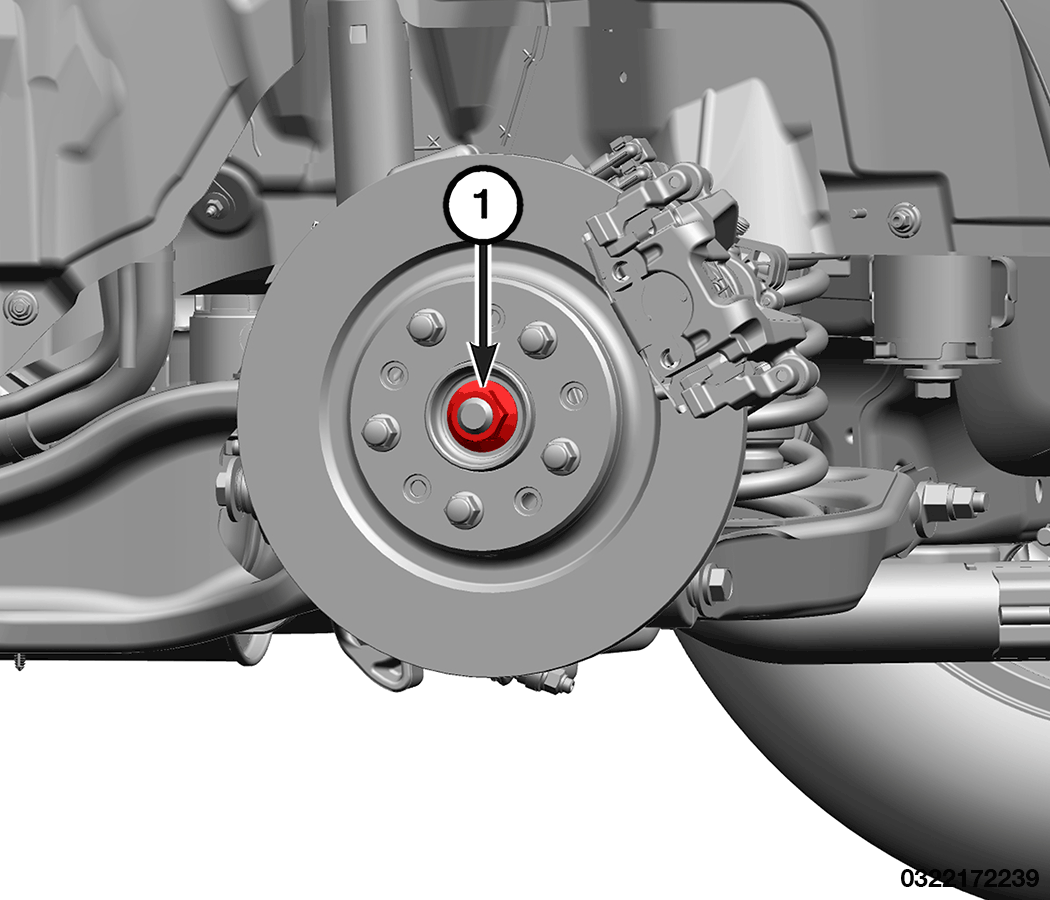

3. Remove and DISCARD  the hub nut (1).
4. Remove the rear hub. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

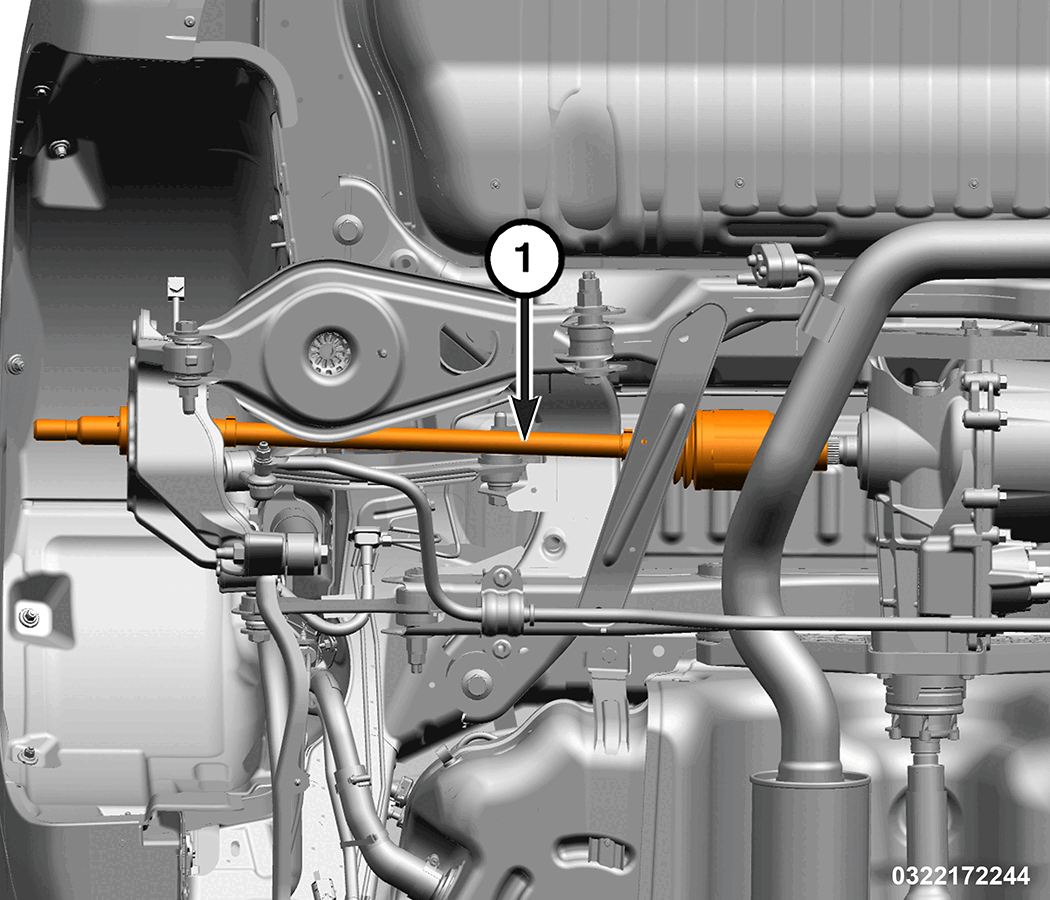

5. Using a pry bar or equivalent, partially dislodge the halfshaft (1) from the Rear Drive Module (RDM).
6. Use a jack stand to compress the suspension and remove the halfshaft from the vehicle.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the halfshaft (1) until the circlip engages in the RDM.
   NOTE:

   If the circlip is fully engaged, the halfshaft will not be removable from RDU by hand.

2. Remove the jack stand compressing the suspension.
3. Install the rear hub. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

4. Install a NEW  hub nut (1). Tighten to proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
5. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
6. Remove the support and lower the vehicle.
