Removal And Installation - AWD: Removal

Disconnect and isolate the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (1) and the oil level indicator tube.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION or BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
Drain the engine oil. Refer to OIL, STANDARD PROCEDURE .
Remove the crossunder pipe. Refer to PIPE, EXHAUST CROSSUNDER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

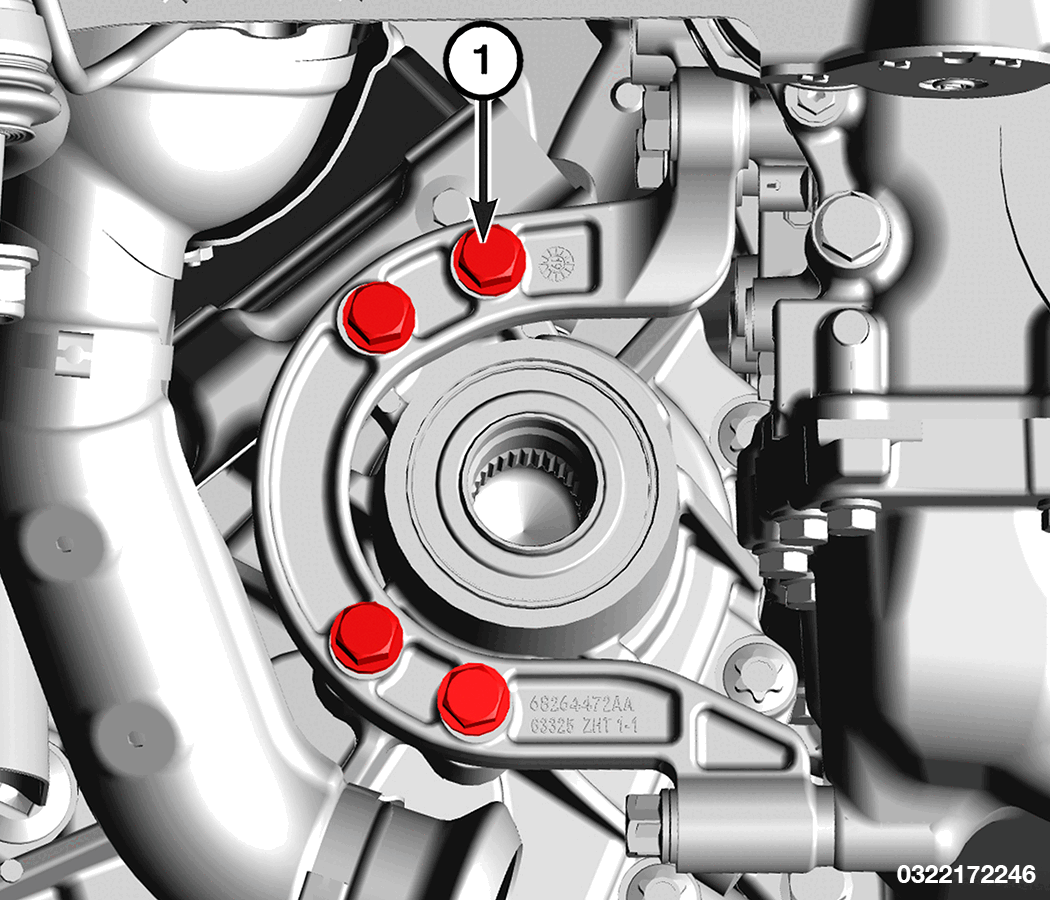

Remove the fasteners (1) from the Power Transfer Unit (PTU) bracket.

Courtesy of CHRYSLER GROUP, LLC

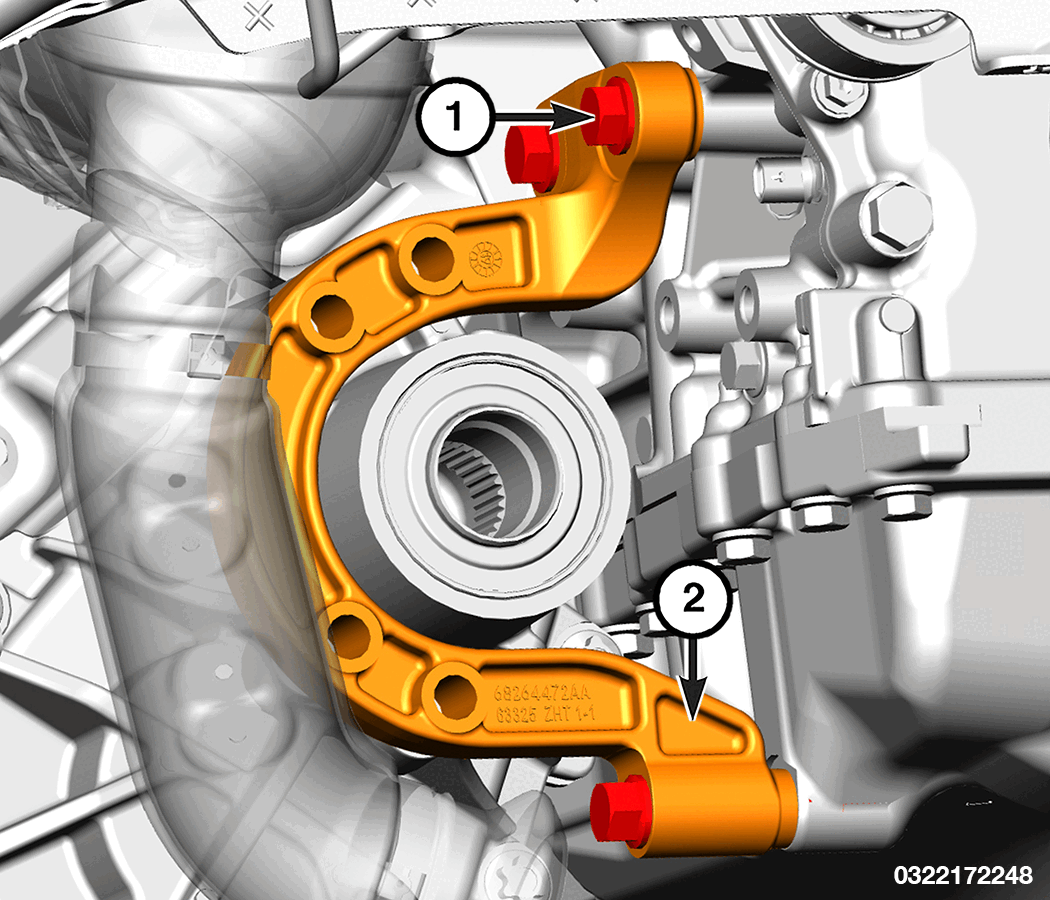

Remove the fasteners (1) securing the PTU bracket (2) to the engine block and oil pan.

Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (1) securing the coolant tube to the oil pan.

Courtesy of CHRYSLER GROUP, LLC

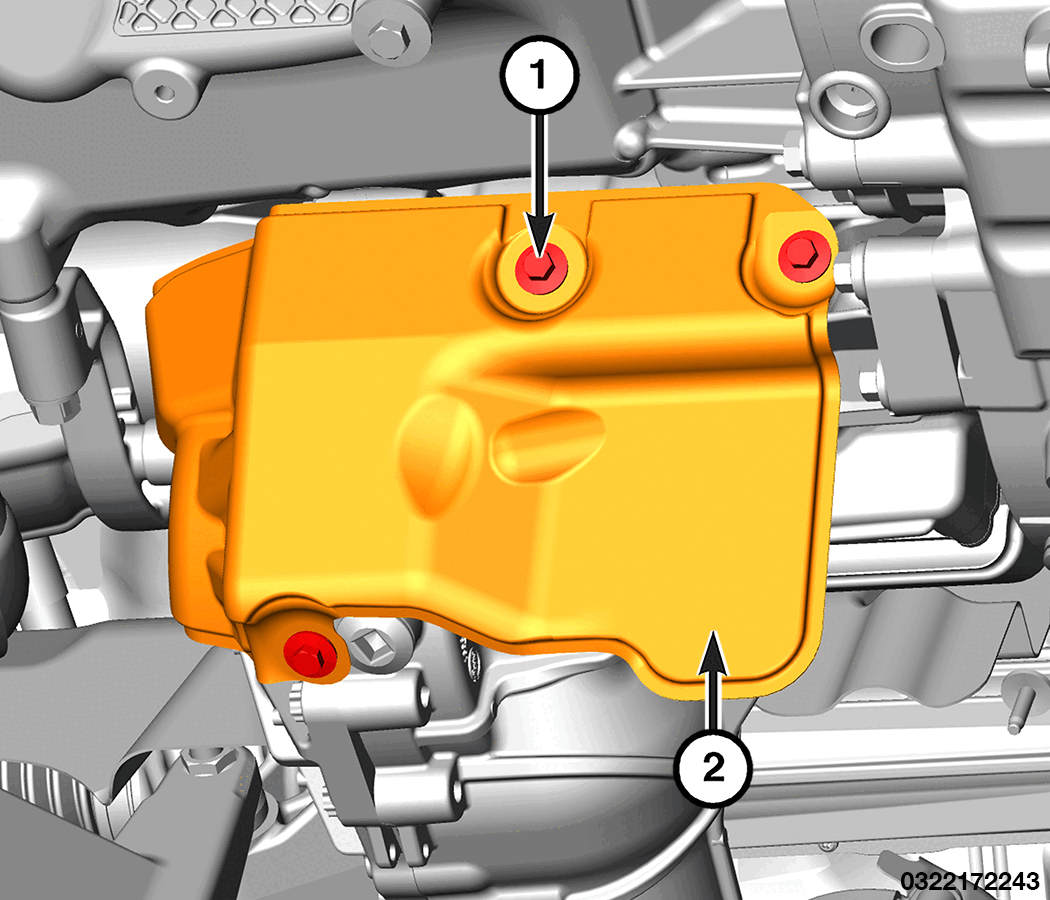

Remove the fasteners (1) securing the PTU lower heatshield (2) and remove the heatshield from the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Remove the torque converter bolt access cover (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the five oil pan to transmission bolts (1).

Courtesy of CHRYSLER GROUP, LLC

Remove two rubber plugs (2) covering the rear oil seal retainer flange bolts.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
There are two hidden M6 bolts that must be removed from the rear of the upper oil pan flange. If these bolts are not removed, the rear oil seal retainer flange will be severely damaged.
Remove two M6 bolts (1) from the rear oil seal retainer flange.

Courtesy of CHRYSLER GROUP, LLC
Remove the nineteen M8 oil pan mounting bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Using the four indicated pry points (1), carefully remove the oil pan.
Remove all residual sealant from the upper and lower oil pans and clean the mating surfaces with isopropyl alcohol in preparation for sealant application. Refer to PAN, OIL, CLEANING .
