Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Lower the rear of the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .

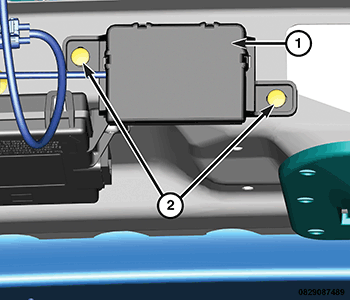

    GC0178205Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the remote start antenna connector from the Radio Frequency Hub (RFH).
  4. Remove the fasteners (2) securing the remote start antenna (1) to the vehicle.

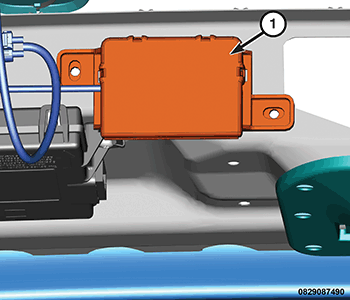

    GC0177565Courtesy of CHRYSLER GROUP, LLC
  5. Remove the remote start antenna (1) from the vehicle.
