Removal And Installation - First Or Second Row: Installation
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

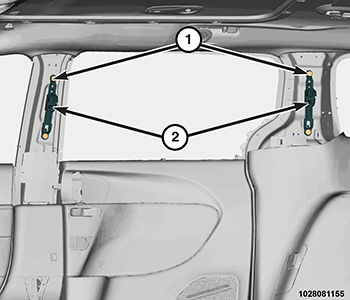

- Position the seat belt turning loop height adjuster (2) to the inside of the applicable upper inner pillar.
- Install the fasteners (1) that secure the adjuster to the pillar and tighten the fasteners to the proper. Refer to TECHNICAL SPECIFICATIONS .
- Install the trim onto the inside of the applicable pillar. Refer to PANEL, B-PILLAR TRIM, LOWER, REMOVAL AND INSTALLATION
or PANEL, B-PILLAR TRIM, UPPER, REMOVAL AND INSTALLATION
.

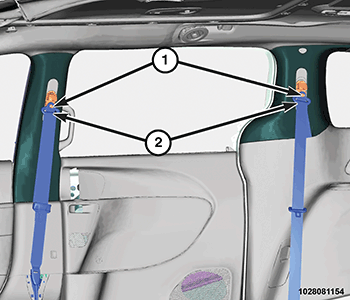

- Position the seat belt turning loop (2) to the height adjuster on the upper pillar. Be certain the seat belt webbing between the retractor and the turning loop is not twisted and turns freely.
- Install the fastener (1) that secures the turning loop to the height adjuster and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

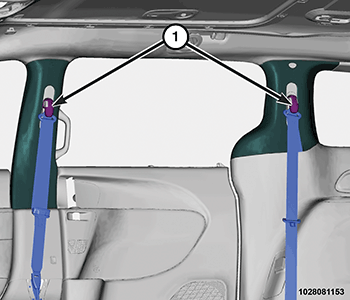

- Install the trim cover (1) over the fastener for the seat belt turning loop.
