Second Row Removable Center Seat: Installation

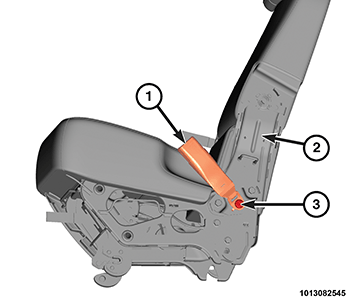

GC0178274Courtesy of CHRYSLER GROUP, LLC
  1. Position the second row center seat belt buckle (1) anchor plate onto the side of the seat cushion frame (2).
  2. Install the fastener (3) that secures the buckle anchor plate to the seat and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

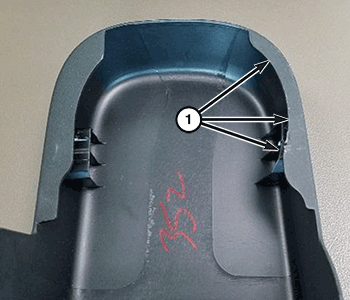

    GC0178315Courtesy of CHRYSLER GROUP, LLC
  3. Install edge (1) of the seat side cover over seat cushion frame.

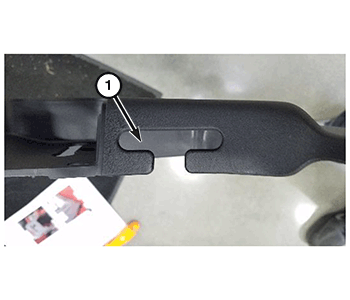

    GC0177673Courtesy of CHRYSLER GROUP, LLC
  4. Work one edge of the seat belt through the slot (1), then install the seat belt to the seat side cover.

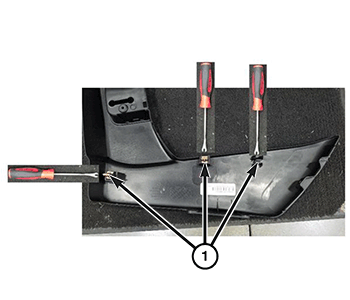

    GC0177700Courtesy of CHRYSLER GROUP, LLC
  5. Install the retainers (1) on the seat side cover to the seat cushion frame.

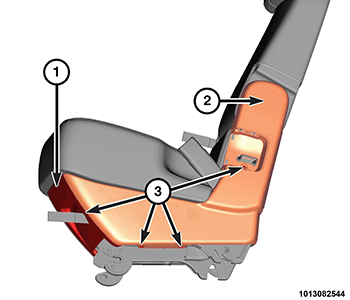

    GC0177382Courtesy of CHRYSLER GROUP, LLC
  6. Install the fasteners (3) that secure the seat side cover (2) to the left side of the second row center seat and tighten securely.
  7. Install the front cover (1) and the access trim for the seat side cover.
  8. Install the second row center seat in the vehicle. Refer to SEAT, STOW-N-GO, REMOVAL AND INSTALLATION .
