Second Row Outboard Seat: Removal
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.
Before replacing the seat belt buckle due to not latching, verify the orientation of the buckle. Be sure that the seat belt is not hitting the side shield preventing the seat belt from fully latching into the buckle.
- If equipped with a center seat in the second row, remove the center seat from the vehicle. Refer to
SEAT, STOW-N-GO, REMOVAL AND INSTALLATION
.

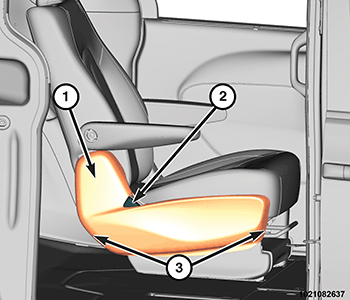

- Remove the fasteners (3) from the appropriate seat inboard side cover (1).
- Remove the inboard seat side cover (1) from the vehicle.

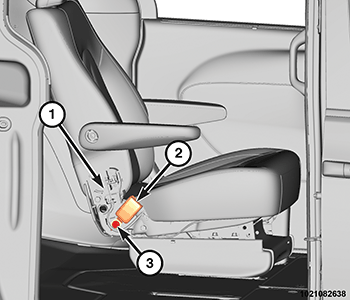

- Remove the fastener (3) that secures the seat belt buckle (2) anchor plate to the side of the seat cushion frame (1).
- Remove the buckle unit from the seat.
