Second Row Center: Installation

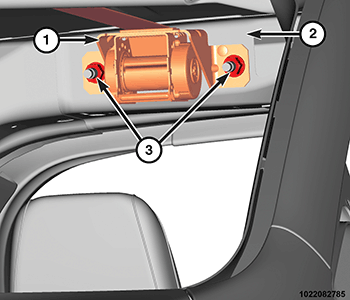

GC0177865Courtesy of CHRYSLER GROUP, LLC
  1. Position the second row center seat belt and retractor (1) to the rear header (2). Be certain the seat belt webbing is not twisted between the retractor and the top of the seat back.
  2. Install the fasteners (3) that secure the retractor to the rear header and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

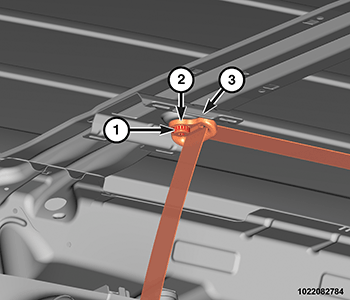

    GC0177617Courtesy of CHRYSLER GROUP, LLC
  3. Install the fastener (1) that secures the second row center seat belt upper anchor plate (2) to the roof bracket (3) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  4. If equipped, install the rear sunshade to the roof interior. Refer to SUNSHADE, SUNROOF, REMOVAL AND INSTALLATION .
  5. Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .

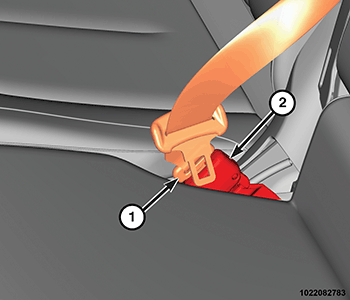

    GC0177183Courtesy of CHRYSLER GROUP, LLC
  6. Connect the second row center seat belt (1) to the lower anchor (2).
