Lamp, Cargo, Interior: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

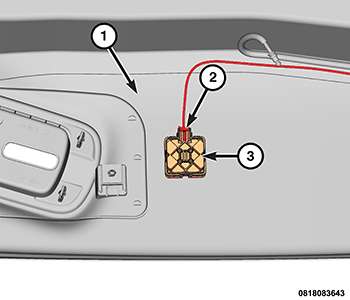

- Lower the rear portion of the headliner (1) enough to gain access to the cargo lamp housing (3). Refer to HEADLINER, REMOVAL AND INSTALLATION .
- Disconnect the roof wire harness connector (2) from the cargo lamp (3).

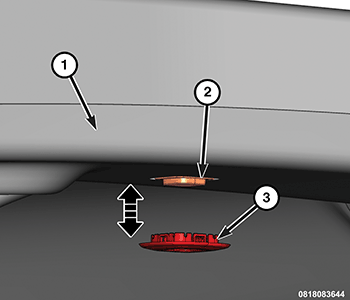

- Using a C-4755 trim stick or equivalent, gently pry the cargo lamp bezel (3) from the headliner (1) to release the cargo lamp (2) and remove the lamp from the headliner.
