Lamp, Courtesy - Console: Installation

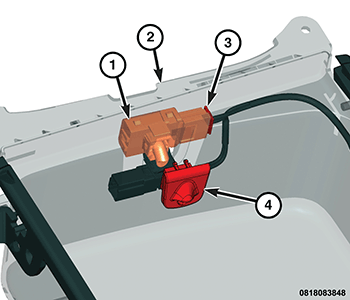

GC0178277Courtesy of CHRYSLER GROUP, LLC
  1. Position the console interior courtesy lamp (1) to the tambour door unit (2) and snap the lamp hood (4) onto the courtesy lamp.
  2. Connect the console wiring harness connector (3) to courtesy lamp (1).

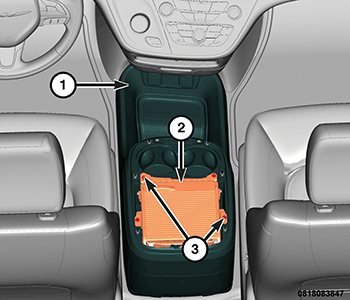

    GC0177755Courtesy of CHRYSLER GROUP, LLC
  3. Position the tambour door unit (2) into the console (1) and install the fasteners (3). Tighten the screws securely.
    GC0177653Courtesy of CHRYSLER GROUP, LLC
  4. Install the upper console bezel (2) onto the console (1).
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
