Lamp, Courtesy - Front Door, Map: Installation

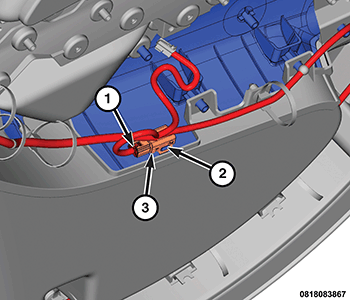

GC0177764Courtesy of CHRYSLER GROUP, LLC
NOTE:

Driver side illustrated; passenger side similar.

  1. Position the door map pocket lamp (3) to the door map pocket panel.
  2. Gently press the lamp (3) into place until the locking tab (2) engages the lamp securely.
  3. Connect the door wiring harness lamp connector (1) to the lamp.
  4. Install the door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
