Lamp, Courtesy - FOOTWELL: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Driver side illustrated; passenger side similar.

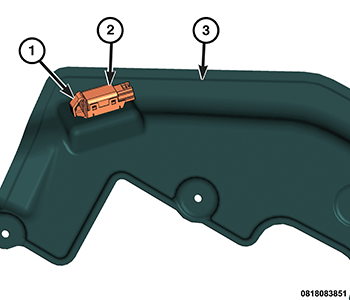

Position the footwell lamp (2) to the closeout panel (3) and gently press the lamp into the closeout panel until the integral retainer (1) is fully engaged with the panel.

Courtesy of CHRYSLER GROUP, LLC

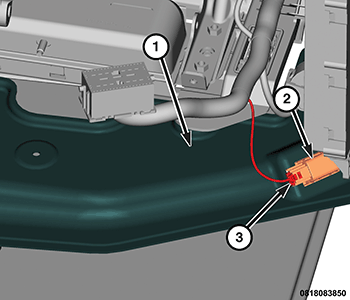

Connect the instrument panel wire harness connector (3) to the footwell lamp (2).

Courtesy of CHRYSLER GROUP, LLC

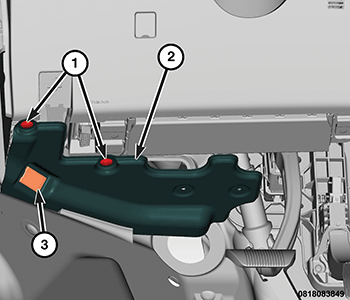

Position the closeout panel (2) to the steering column opening cover and install the push-pin retainers (1).
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
