Lamp, Courtesy - Seat, Passenger Bottom: Removal

  1. Disconnect and isolate the negative battery cable.

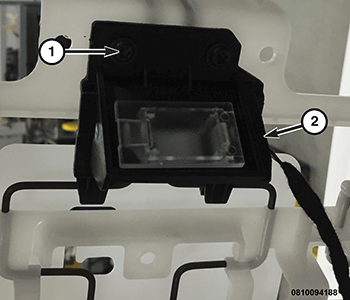

    GC0177603Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the wire harness connector (2) from the light assembly.
  3. From beneath the passenger front seat bottom, remove the fasteners (1) securing the light assembly to the bottom of the seat.
