Installation - Lamp/Switch
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

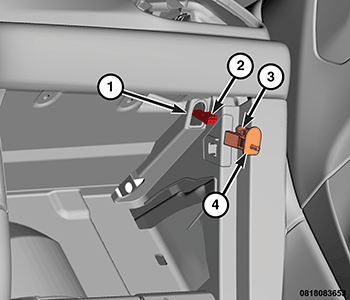

- Position the glove box lamp and switch (4) to the mounting hole in the instrument panel (1).
- Connect the instrument panel wire harness connector (2) to the lamp and switch (4).
- Feed the wire harness back through the switch mounting hole.
- Align the lamp and switch with the mounting hole in the instrument panel (1).
- Using hand pressure, push the lamp and switch firmly and evenly into the mounting hole until it is fully seated.
- Install the right front outer air outlet into the instrument panel. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .
- Install the glove box into the instrument panel. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
