Removal And Installation: PACIFICA

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the front fasteners for the front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

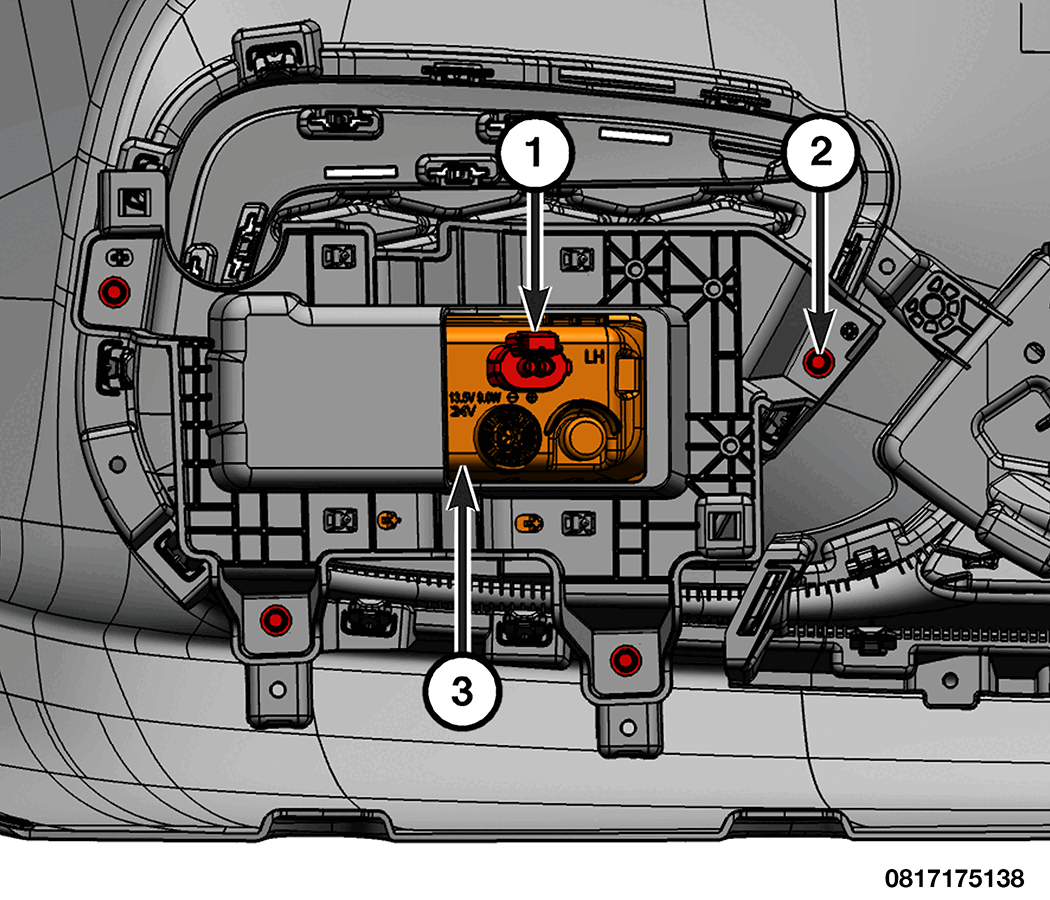

3. Disconnect the wiring harness connector (1) from the back of the fog lamp (3).
4. Remove the fasteners (2) then remove the fog lamp (3) and bracket as an assembly from the front fascia.

   Courtesy of CHRYSLER GROUP, LLC

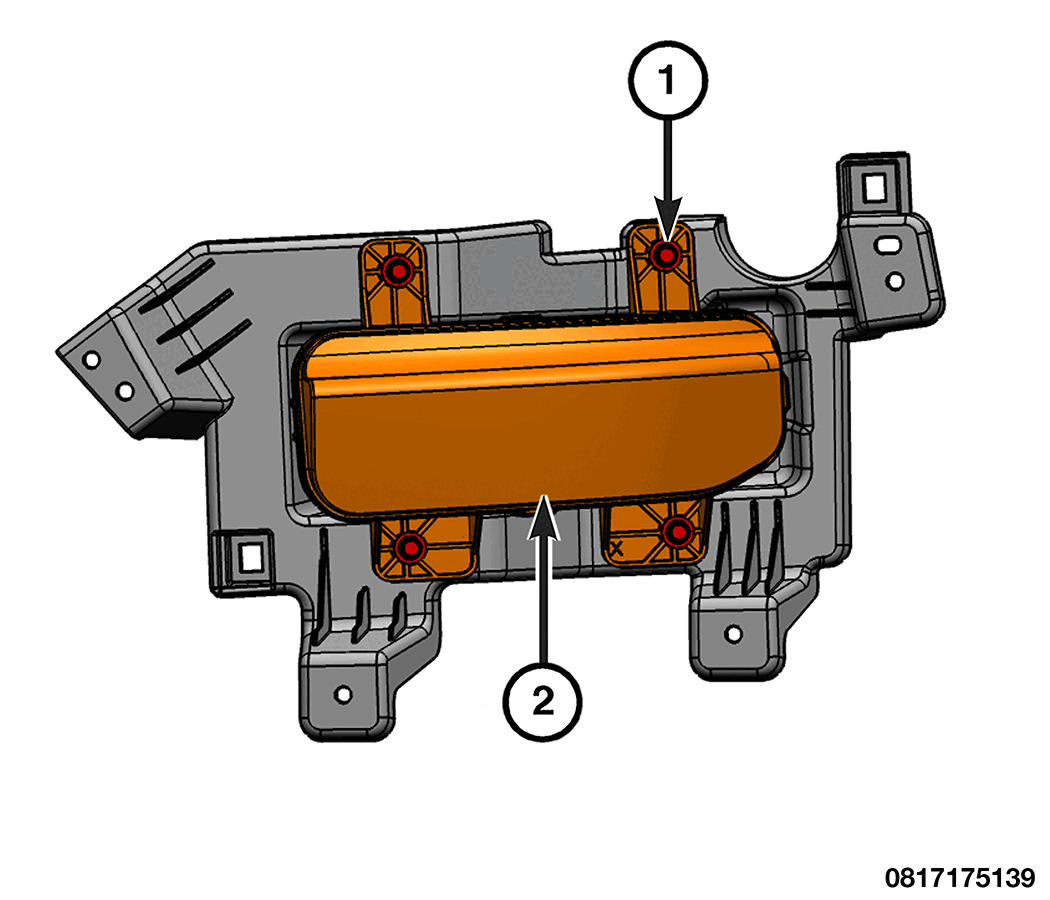

5. Remove the fasteners (1) and remove the fog lamp (2) from the bracket,

INSTALLATION

1. Position the fog lamp to the bracket and install the fasteners. Tighten the fasteners securely.
2. Position the fog lamp and bracket assembly to the front fascia and install the fasteners. Tighten the fasteners securely.
3. Connect the wiring harness connector to the back of the fog lamp assembly.
4. Install the front wheelhouse splash shield fasteners. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
