Lamp - Front Side Marker

REMOVAL

1. Remove enough of the fasteners that secure the front wheelhouse splash shield to the front fascia to gain access to the back of the side marker lamp housing. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

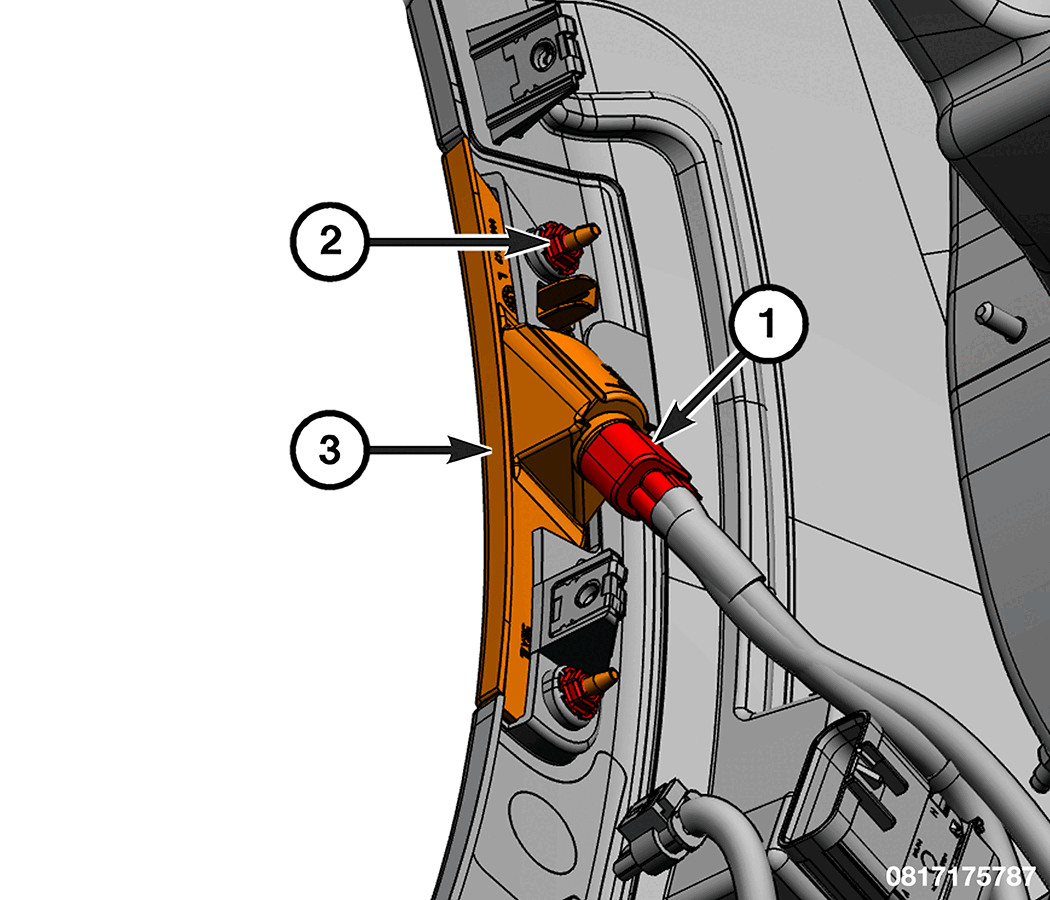

   Courtesy of CHRYSLER GROUP, LLC

2. Disconnect the wire harness connector (1) from the side marker lamp (3).
3. Remove the fasteners (2) that secure the side marker lamp (3) to the front fascia.
4. Release the locking tab and the side marker lamp (3) from the front fascia.

INSTALLATION

1. Position the side marker lamp onto the fascia.
2. Install and tighten the fasteners that secure the lamp housing to the fascia. Tighten the fasteners securely.
3. Connect the wire harness connector to the side marker lamp socket.
4. Install the removed fasteners that secure the front wheelhouse splash shield to the front fascia. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
