Liftgate Lamp - PACIFICA

REMOVAL

1. Remove the lower liftgate trim panel. Refer to PANEL, TRIM, REMOVAL AND INSTALLATION .
2. Disconnect the wire harness connectors from the liftgate lamp.

   Courtesy of CHRYSLER GROUP, LLC

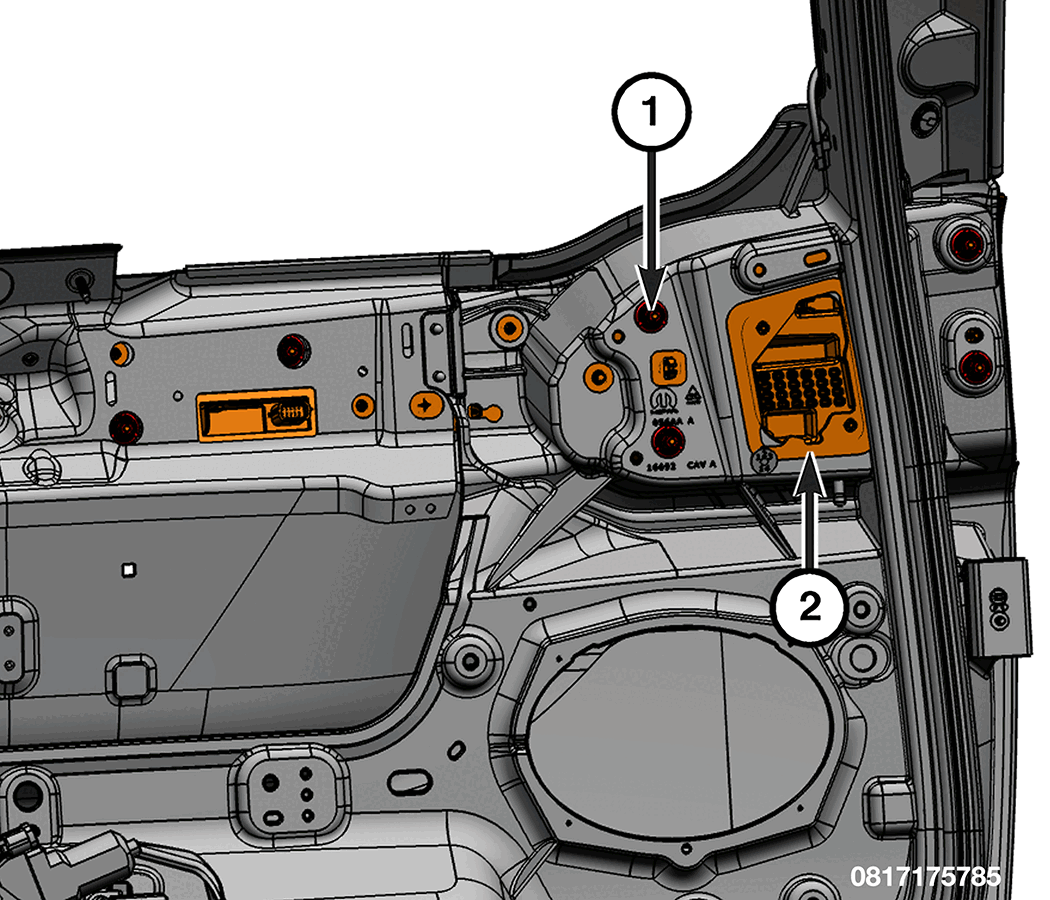

3. Remove the fasteners (1) securing the left side of the liftgate lamp (2) to the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

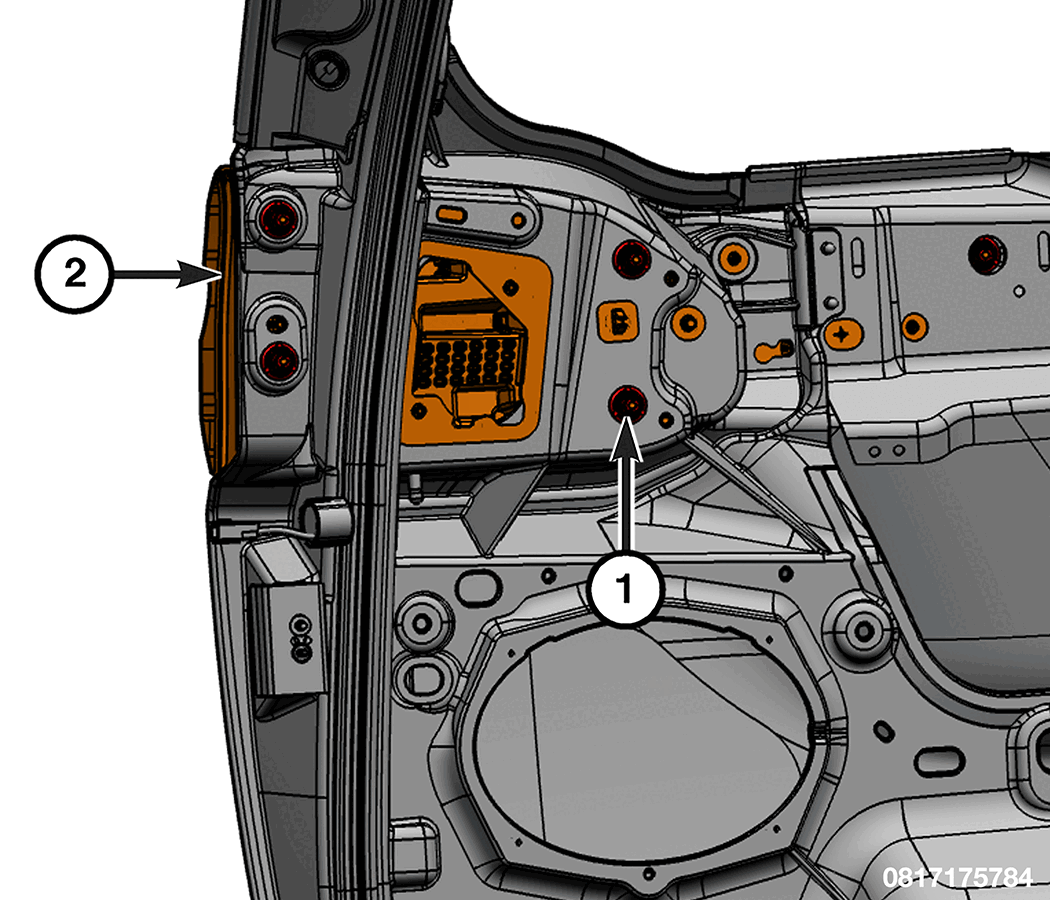

4. Remove the fasteners (1) securing the right side of the liftgate lamp (2) to the vehicle, then remove the lamp.

INSTALLATION

1. Position the liftgate lamp to the vehicle, then install the fasteners securing the lamp to the vehicle. Tighten the fasteners securely.
2. Connect the wire harness connectors to the liftgate lamp.
3. Install the lower liftgate trim panel. Refer to PANEL, TRIM, REMOVAL AND INSTALLATION .
