Motor-Sliding Door Window

  1. Remove the sliding door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .

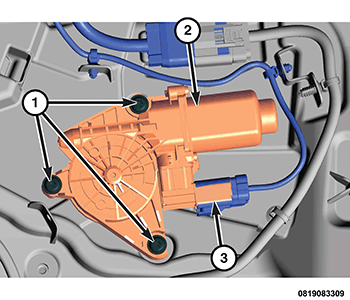

    GC0177856Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the electrical connector (3) from the sliding door window regulator motor (2).
  3. Remove three sliding door window regulator motor mounting fasteners. (1)
  4. Remove the sliding door window regulator motor.
