Switch-Driver Door

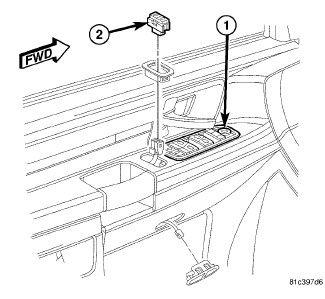

GC0124816Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using a pry tool, gently remove the switch assembly (1) or the vent window switch (2) from the door trim panel.
  3. Disconnect the electrical connectors.
