Home >> Chrysler >> 2021 >> Voyager LXi, Gas >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows (Service Information) >> Switch, Power Window >> Removal And Installation >> Removal >> Switch-Passenger Door

Switch-Passenger Door

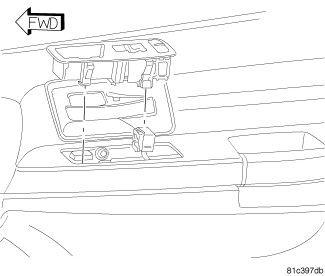

GC0124817Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Using a pry tool, gently remove the switch assembly from the door trim panel.
  3. Disconnect the electrical connector.
