Home >> Chrysler >> 2021 >> Voyager LXi, Gas >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows (Service Information) >> Switch, Power Window >> Removal And Installation >> Installation >> Switch-Sliding Doors

Switch-Sliding Doors

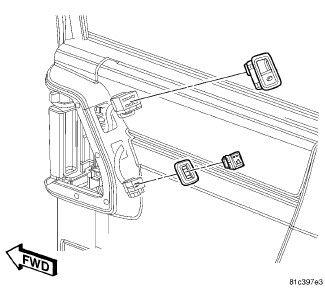

GC0124818Courtesy of CHRYSLER GROUP, LLC
  1. Connect the electrical connectors and install the switch.
  2. Firmly snap the switch assembly into the inside door handle.
  3. Connect the battery negative cable.
