Removal And Installation: Installation

  1. Clean the EGR temperature sensor sealing surface.

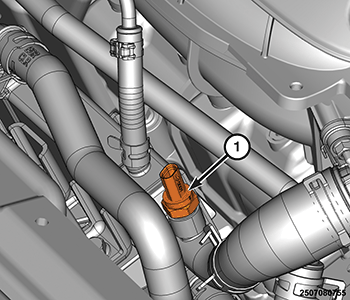

    GC0177238Courtesy of CHRYSLER GROUP, LLC
  2. Install EGR temperature sensor (1) and tighten to the proper torque specifications. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .

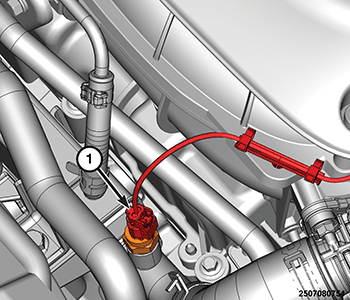

    GC0177677Courtesy of CHRYSLER GROUP, LLC
  3. Connect EGR temperature sensor wire harness connector (1).
  4. Connect the negative battery cable.
