Removal And Installation: Removal

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Disable the airbag system before attempting any component diagnosis or service of the front seats, when equipped with front seat air bags. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

Remove the appropriate front seat assembly. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .

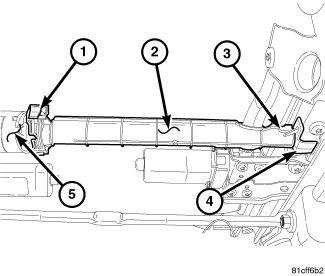

Remove the flex drive cable cover (2).
1. Using a small flat bladed tool, release the mounting strap (1) that secures the flex drive cable cover (2) to the fore/aft motor (5).
2. Pivot the cover away from the cable and pull it away from the seat frame (4) to disengage the cover slot from the mounting tab (3).
Courtesy of CHRYSLER GROUP, LLC

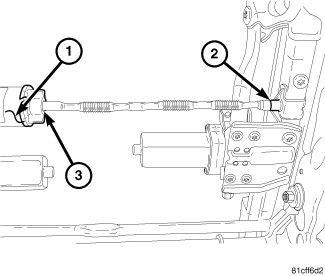

Remove the flex drive cable.
1. Carefully bend the flex drive cable at the center and pull the motor end (3) away from the fore/aft motor (1) to disengage.
2. Pull the cable out of the screw drive assembly (2) and remove from seat track.
Courtesy of CHRYSLER GROUP, LLC
Disconnect the fore aft motor electrical connector.

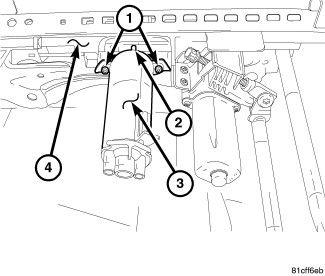

Remove the fore/aft motor to mounting bracket retaining screws (1).
Remove the fore/aft motor (3).
Remove the short flex drive cable (2) from the seat frame assembly (4).
