Removal And Installation: Installation

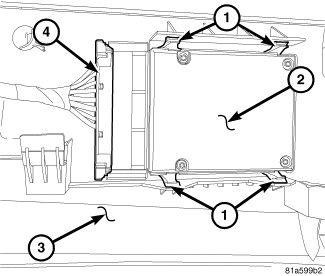

GC0124791Courtesy of CHRYSLER GROUP, LLC
  1. Position the power seat switch (2) to the seat cushion side shield (3). Gently apply pressure to the switch until the mounting tabs (1) are fully seated in place.
  2. Connect the power seat switch electrical connector (4).
  3. Install the seat cushion side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .
  4. Verify normal operation of the power seat assembly.
