Removal And Installation: Removal

NOTE:

The procedure for replacing the seat leg latch release actuator and cable assembly is the same for both the 60 and 40 third row power folding seats. The following steps should be performed only on the seat with the inoperative seat leg latch release actuator and cable assembly.

Remove the effected third row power folding seat. Refer to SEAT, REMOVAL AND INSTALLATION
Remove the seat cushion and cover assembly. Refer to COVER, SEAT CUSHION, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

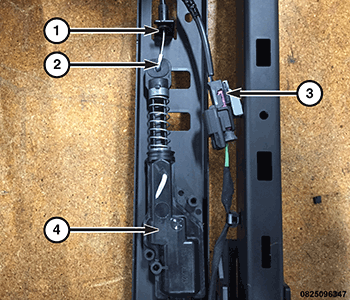

Disconnect the wiring harness connector (3) from the actuator.
Release the actuator cable from the guide (1).
Disconnect the cable assembly (2) from the actuator.

Courtesy of CHRYSLER GROUP, LLC

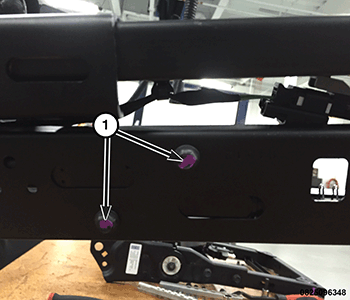

Remove the bolts (1) securing the actuator to the seat track frame.
Remove the actuator from the vehicle.
