Inside Mirror
An automatic dimming inside rear view mirror is an available factory-installed option on this vehicle. This mirror features a thin layer of ElectroChromic (EC) material sandwiched between two pieces of conductive glass to make up the face of the mirror.

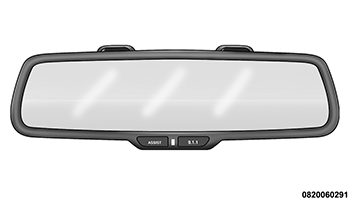

The ElectroChromatic Mirror Module (ECMM) is a completely self-contained unit that replaces the standard equipment prismatic inside rear view mirror. Besides the mirror glass, the ECMM includes a power switch, a Light Emitting Diode (LED) power indicator, two photocell sensors, the electronic mirror control circuitry and the hardware necessary to communicate as a Local Interface Network (LIN) slave node on the LIN data bus.
The ECMM may also integrate these other optional features:
- Microphones - Stereo microphones are integral to the inside rear view mirror in vehicles equipped with the hands-free phone system. These microphones are located on the top surface of the mirror housing, one to each side of center.
- Assist
- Pressing the
ASSIST
button will present the customer with three choices. Uconnect™ Care, Vehicle Care or Roadside Assistance. These selection options are presented as soft keys in the Radio Receiver Module (RRM) display. Selecting any one of these choices will place a call to the selected group. If there are questions about Uconnect™ Services, Uconnect™ Care can be contacted; if there are questions related to vehicle functionality, Vehicle Care can be contacted; or, if Roadside Assistance is needed, a direct call can be made.
- 9-1-1
- Pressing the
9-1-1
button will initiate an emergency call to a Public Safety Answering Point (PSAP). The Global Positioning System (GPS) coordinates of the vehicle are made available to the emergency operator in the event help needs to be sent. In addition it opens a two way voice channel with the emergency operator allowing communication between the vehicle occupant and the emergency operator.
The ECMM cannot be repaired or adjusted. If any component of this unit is ineffective or damaged, the entire ECMM unit must be replaced.
