Removal And Installation: Installation

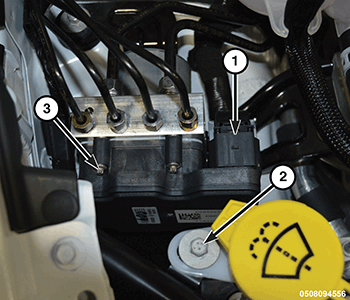

GC0177720Courtesy of CHRYSLER GROUP, LLC
  1. Carefully place the Anti-lock Brake System (ABS) module in position on the hydraulic control unit (HCU).
  2. Install the four ABS module to HCU mounting bolts (3) and tighten securely.
  3. Connect the ABS electrical harness connector (1).
  4. Install the washer solvent fill tube into the top of the washer solvent reservoir, and install the mounting screw (2).
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  6. Perform the Verification Test and clear and faults. Refer to STANDARD PROCEDURE .
