Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
2. Remove the Integrated Center Stack (ICS) module. Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

   Courtesy of CHRYSLER GROUP, LLC

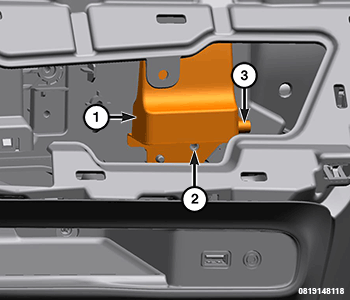

3. Remove the screw (2) securing the Long Term Evolution 2 (LTE2) antenna (1) to the instrument panel.
4. Disconnect the wire harness connector (3) and remove LTE2 antenna (1) from the vehicle.

INSTALLATION

1. Connect the wire harness connector to the LTE2 antenna.
2. Install the screw securing the LTE2 antenna to the instrument panel and tighten securely.
3. Install the ICS module. Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
