Removal And Installation: Removal

WARNING:

Hoisting and jack lift points provided in this information are for a complete vehicle. When the transaxle is removed, the center of gravity will shift to the rear of the vehicle, possibly creating an unstable condition. Place safety stands under the rear frame rails behind the rear axle to stabilize the vehicle. Personal injury may result if safety stands are not used.

Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

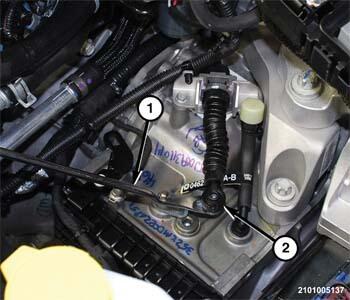

Using a suitable prying tool (1), separate the Manual Park Release (MPR) cable end (2) from the MPR lever on the transmission.

Courtesy of CHRYSLER GROUP, LLC

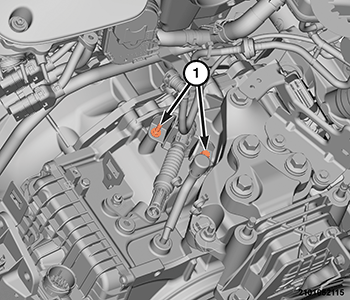

Remove the bolts (1) from the MPR cable bracket.

Courtesy of CHRYSLER GROUP, LLC

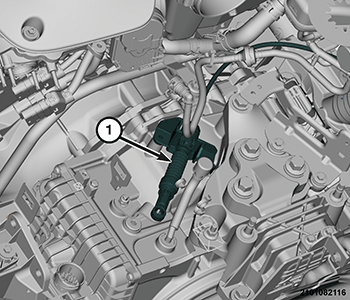

Position the MPR cable (1) and bracket aside.

Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (1) securing the cooling hose to the transmission.

Courtesy of CHRYSLER GROUP, LLC

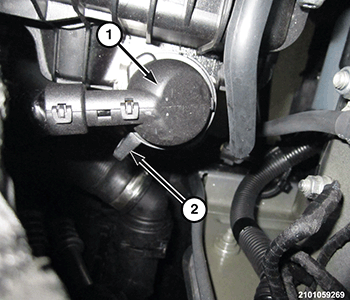

Disconnect the transmission wire harness connector (1) from the transmission by rotating the lock lever (2) counterclockwise.

Courtesy of CHRYSLER GROUP, LLC

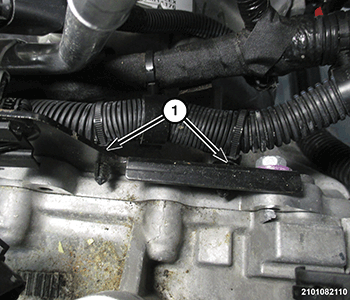

Remove the bolts (1) from the wire harness (2) and position aside.
Remove the Left Hand (LH) and Right Hand (RH) half shafts. Refer to REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

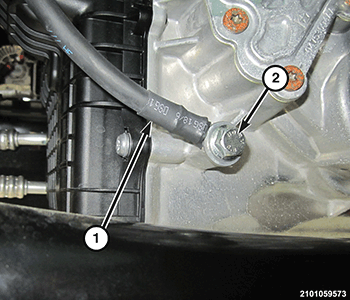

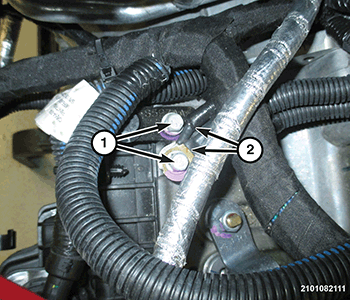

Remove the ground cable bolt (2) and position the ground cable (1) aside.
Remove the cowl panel cover. Refer to COVER, COWL PANEL, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

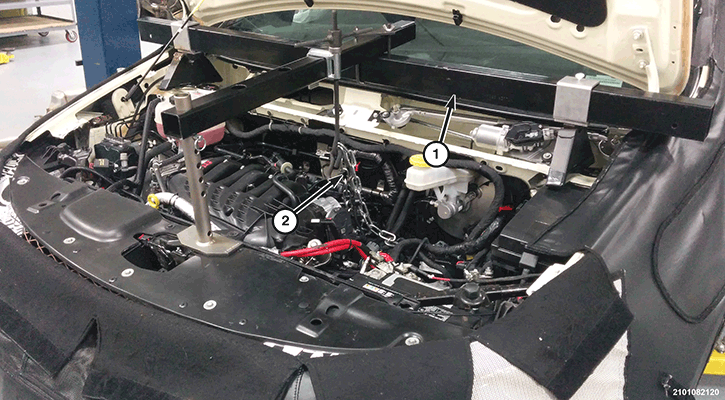

Install the Driveline Support Fixture (special tool #8534C, Fixture, Driveline Support) (1) and chain (2).

Courtesy of CHRYSLER GROUP, LLC

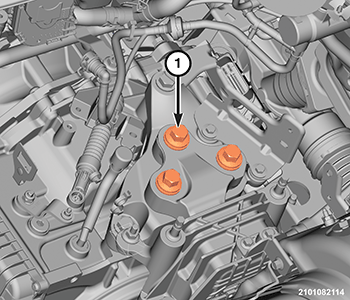

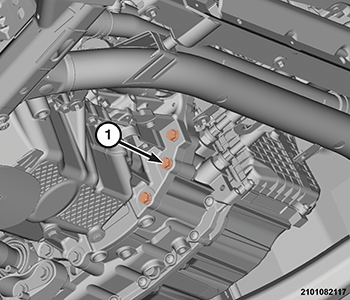

Remove the transmission mount adaptor bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the wiring harness push pins (1) from the bracket.

Courtesy of CHRYSLER GROUP, LLC

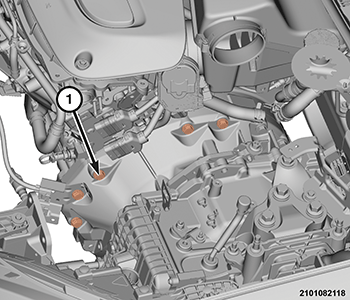

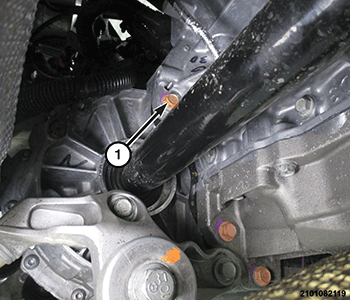

Remove the starter bolts and the transmission to engine bolts (1).

Courtesy of CHRYSLER GROUP, LLC

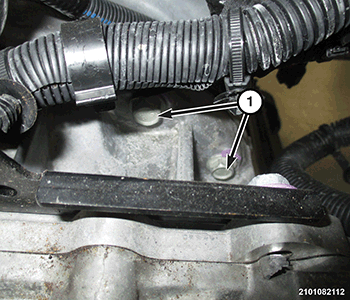

Remove the transmission to engine bolts (1).
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
If equipped, remove the Power Transfer Unit. Refer to REMOVAL AND INSTALLATION .
Remove the front crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
Separate the cooler lines from the transmission. Refer to TUBES AND HOSES, TRANSMISSION OIL COOLER, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

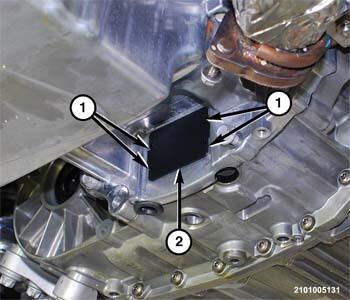

Remove the torque converter bolt access cover (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
There are three pairs of bolts 120° apart attaching the flexplate to the torque converter.

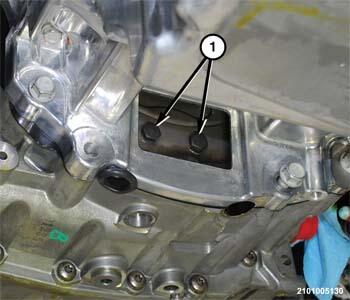

Through the access door opening, remove the torque converter bolts (1). Rotate the crankshaft to bring each set of bolts into view through the access door.

Courtesy of CHRYSLER GROUP, LLC

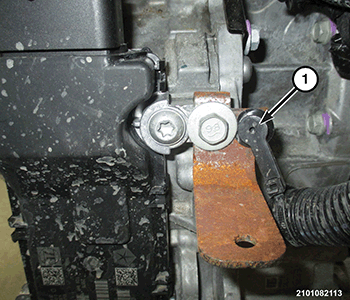

Remove the wiring harness push pin (1) from the bracket.
Position a suitable transmission jack under the transmission and secure the transmission to the lift plate of the transmission jack.

Courtesy of CHRYSLER GROUP, LLC

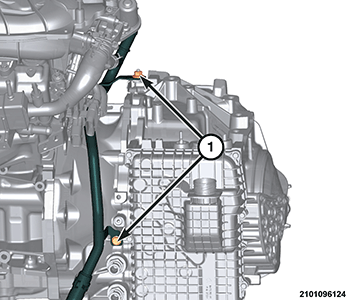

Remove the engine to transmission bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the engine to transmission bolts (1).
CAUTION:
The transmission and torque converter must be removed as an assembly to avoid component damage. The converter driveplate, oil pump, or oil seal can be damaged if the converter is left attached to the driveplate during removal. Be sure to remove the transmission and converter as an assembly.
Using a suitable prying tool, pry the bell housing away from the engine block.
Remove the transmission from the vehicle.
