Differential Bearing Installation

If only the bearing is being replaced, the bearing preload does not require selecting a new select shim. If the transmission housing, bellhousing or differential is replaced, the proper thickness select shim will have to be determined. Refer to STANDARD PROCEDURES .

1. Clean the differential with solvent and blow it dry with regulated 344 kPa (50 psi) shop air.

   Courtesy of CHRYSLER GROUP, LLC

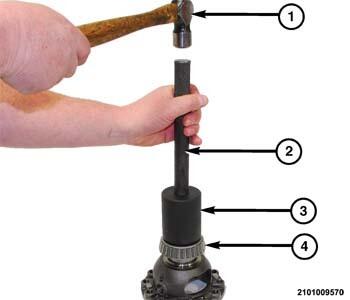

2. Using a suitable hammer (1), (special tool #6888, Installer, Seal) (3) and (special tool #C-4171, Driver Handle, Universal) (2), install the side bearings (4).
3. If necessary, assemble the differential assembly. Refer to DIFFERENTIAL AND RING GEAR, DISASSEMBLY AND ASSEMBLY .

   Courtesy of CHRYSLER GROUP, LLC

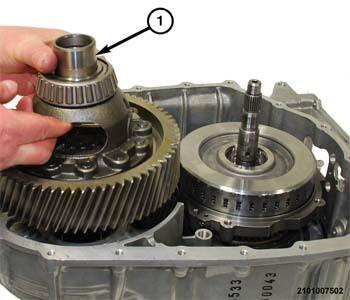

4. Install the differential assembly (1) into the transmission housing.
5. Install the bellhousing. Refer to BELLHOUSING, REMOVAL AND INSTALLATION .
6. Install the transmission. Refer to REMOVAL AND INSTALLATION .
