Oil Pump Sprocket Needle Bearing Removal

Remove the transmission from the vehicle. Refer to REMOVAL AND INSTALLATION .
Remove the bellhousing from the transmission. Refer to BELLHOUSING, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the fluid tube (1) from the bellhousing and intermediate support plate and discard the fluid tube O-rings (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the bolt (2) holding the oil filter (1) to the intermediate support plate.

Courtesy of CHRYSLER GROUP, LLC
Separate the oil filter (1) from the intermediate support plate (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (2) holding the reaction shaft (1) to the intermediate support plate (4).

Courtesy of CHRYSLER GROUP, LLC
Separate the reaction shaft (2) from the intermediate support plate (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (3) holding the intermediate support plate and oil pump (4) to the bellhousing.

Courtesy of CHRYSLER GROUP, LLC
Separate the intermediate support plate and oil pump (1) and oil pump drive sprocket and chain (2) from the bellhousing (3).
Using a suitable screw driver, remove the impeller hub seal from the bellhousing.

Courtesy of CHRYSLER GROUP, LLC
Using a suitable screw driver (2), remove the snap-ring (1) holding the oil pump sprocket needle bearing (3) in the bellhousing.

Courtesy of CHRYSLER GROUP, LLC

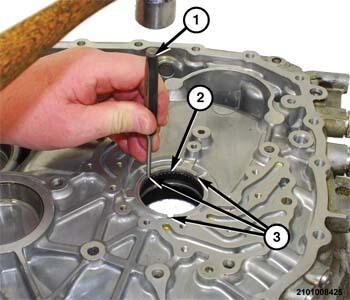

Using a suitable punch tool (1), remove the oil pump sprocket needle bearing (2) by tapping outward while alternating between the three notches (3) in the bellhousing bore flange.
