Removal And Installation: Installation

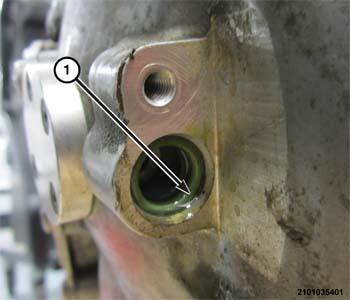

- Install a NEW
differential end O-Ring seal (1).

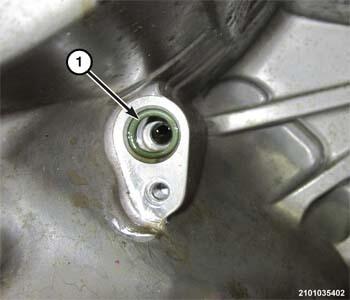

- Install a NEW
oil supply tube O-Ring (1).

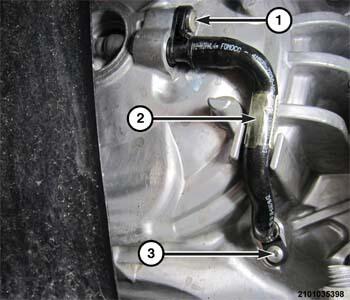

- Install the oil supply tube (2) onto transmission.
- Install the oil supply tube bolts (1 and 3) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Install the left front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Fill the transmission to the proper level with the correct fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
