Removal And Installation

REMOVAL

1. Raise and properly support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the left front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
3. Remove the left front fender splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

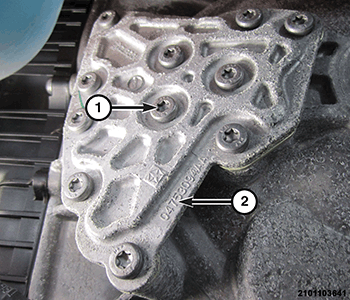

4. Remove the eleven cover plate bolts (1) and the cover plate (2).
5. Clean the mating surfaces.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Install the cover plate (2) with a NEW  gasket.
2. Install the cover plate bolts and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
3. Check the transmission fluid level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
4. Install the left inner splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
5. Install the left front wheel and tire assembly. Refer to REMOVAL AND INSTALLATION .
