Lower Intake Manifold: Removal

Release the fuel system pressure. Refer to FUEL DELIVERY, GAS, STANDARD PROCEDURE .
Remove the upper intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the insulator (1) from the left cylinder head cover.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the fuel supply hose (1) from the fuel rail inlet. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Disconnect the fuel injector wire harness connectors (1) and remove the wire harness assembly from the cylinder head covers on each side of the engine, then position the wire harness aside.

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1) then lift the fuel rail and fuel injectors from the lower intake manifold.

Courtesy of CHRYSLER GROUP, LLC

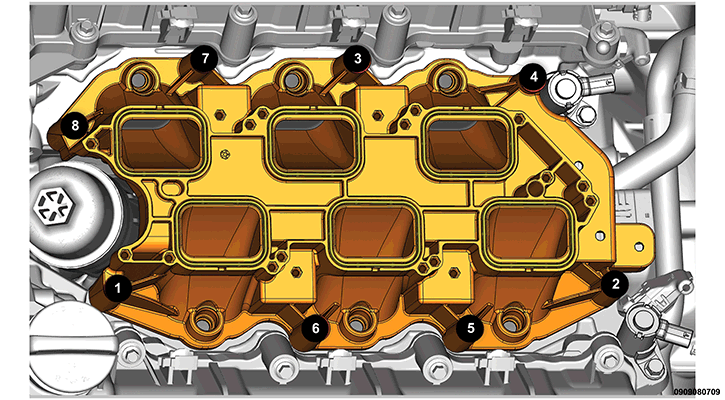

Using the sequence shown in illustration, remove the bolts and lower intake manifold.

Courtesy of CHRYSLER GROUP, LLC

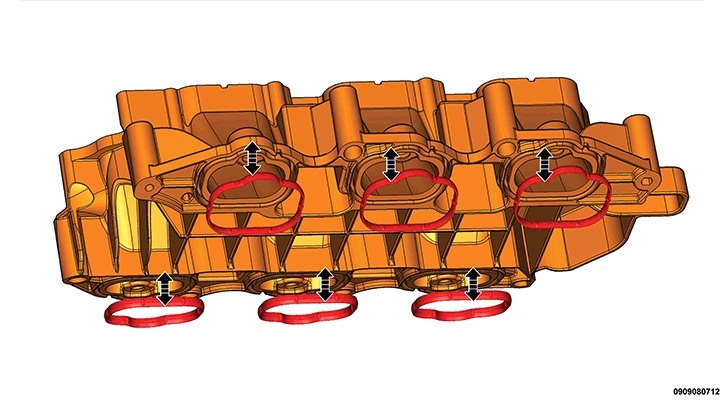

Inspect the six lower intake manifold to cylinder head gaskets, and replace only if necessary.
