Oil Temperature Sensor
DESCRIPTION

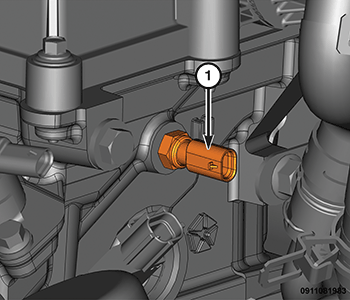

The oil temperature sensor (1) is located on the back of the right cylinder head. The oil temperature sensor is a two wire sensor with a tapered threaded sensor probe. The sensor probe is mounted to the cylinder head through an access hole. A thread lock patch seals the oil temperature sensor to the cylinder head.
