Removal And Installation: Fwd: Installation
- Position the hub and bearing assembly to the knuckle.

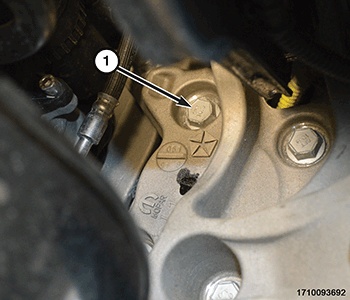

- Install the hub and bearing to knuckle fasteners (1) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

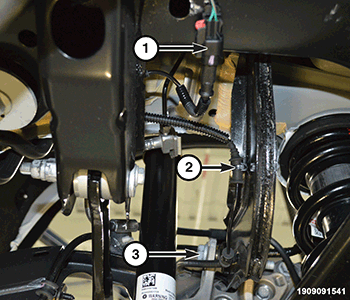

- Install the wheel speed sensor to the wire retainers (2) along the camber link.
- Connect the wheel speed sensor to the vehicle harness connector (1).
- Install the rear brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
