Removal And Installation: AWD: Removal

  1. Remove the hub and bearing assembly. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .
  2. Disconnect the stabilizer link from the knuckle. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .

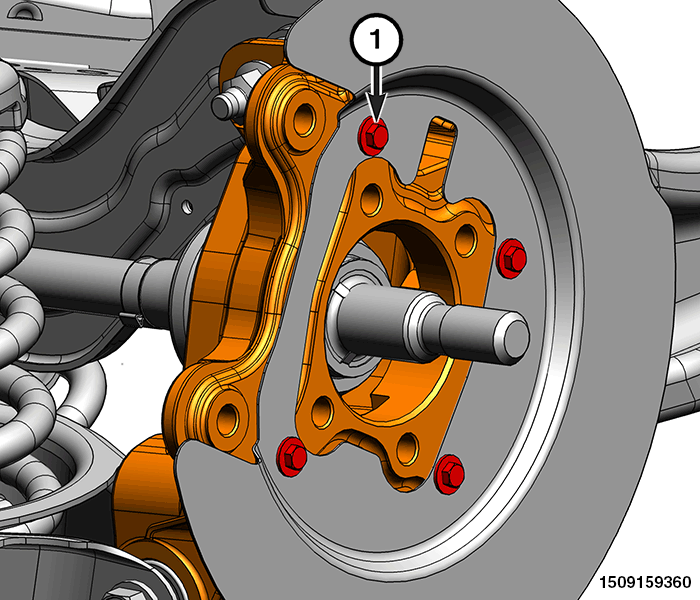

    GC0200292Courtesy of CHRYSLER GROUP, LLC
  3. Remove the four splash shield to knuckle fasteners (1).
  4. Place a suitable support under the spring link.
  5. Disconnect the toe link from the knuckle. Refer to LINK, TOE, REMOVAL AND INSTALLATION .
  6. Disconnect the shock absorber from the knuckle. Refer to SHOCK ABSORBER, SUSPENSION, REMOVAL AND INSTALLATION .

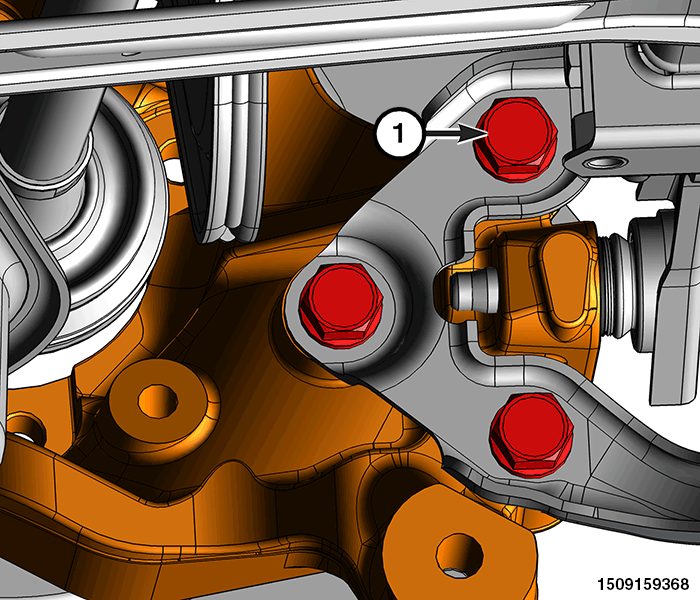

    GC0200344Courtesy of CHRYSLER GROUP, LLC
  7. Remove the three trailing arm to knuckle fasteners (3).
    GC0178073Courtesy of CHRYSLER GROUP, LLC
  8. Remove camber link to knuckle fastener (3).

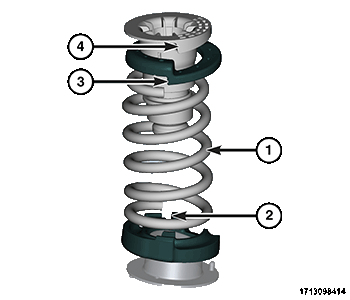

    GC0177892Courtesy of CHRYSLER GROUP, LLC
  9. Carefully lower the jack and remove the spring (1), jounce bumper (4), and upper isolator (3), and lower isolator (2) together as an assembly.

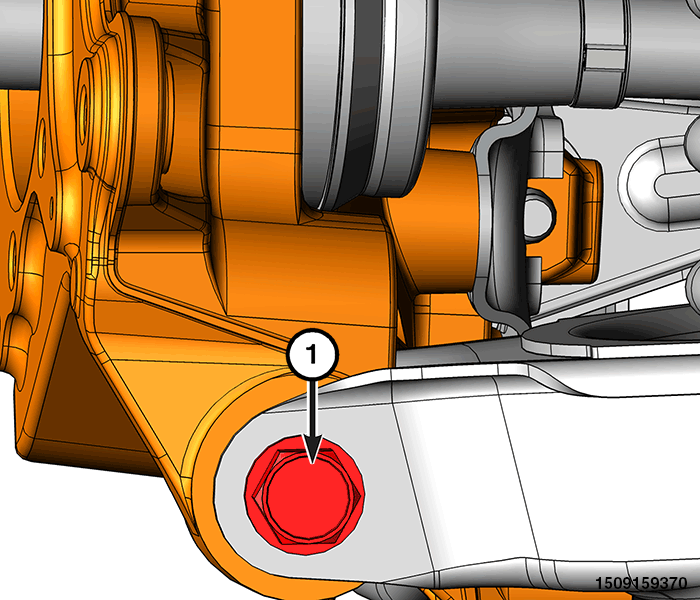

    GC0200270Courtesy of CHRYSLER GROUP, LLC
  10. Remove the spring link to knuckle fastener (4).
  11. Remove the knuckle.
