Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

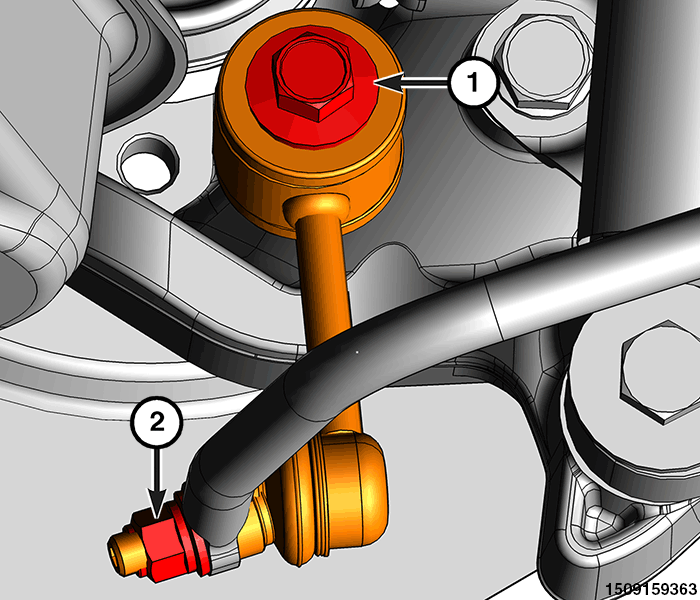

    GC0188018Courtesy of CHRYSLER GROUP, LLC
  2. Remove the stabilizer bar link upper fastener (1).
  3. Remove the stabilizer bar link lower fastener (2).
  4. Remove stabilizer bar link.
