Removal And Installation: Installation

NOTE:

Torque all fasteners with the vehicle on the ground at ride height.

Courtesy of CHRYSLER GROUP, LLC

Position the spring link on the vehicle.

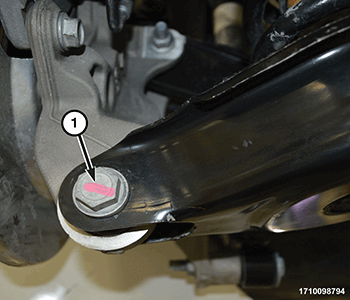

Install the spring link to knuckle mounting fastener (1) Do not tighten the fastener at this time.

Courtesy of CHRYSLER GROUP, LLC

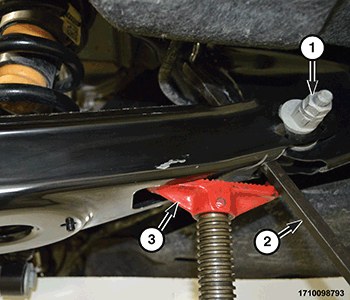

Position a suitable jack (3) under the spring link.
Install the rear springs. Refer to SPRING(S), REMOVAL AND INSTALLATION .
