Mid Size

REMOVAL

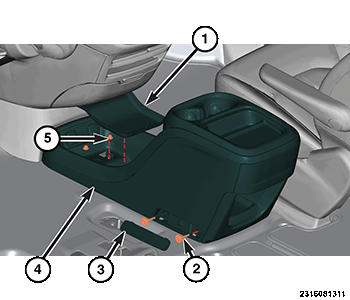

Courtesy of CHRYSLER GROUP, LLC

1. Remove the inboard  seat track covers, for both driver and passenger front seats.
2. Position the front seats full forward, to access the bolt cover (3) and bolts (2) from under the seat.
3. Using a trim stick or equivalent, remove the screw covers then remove the screws from under the seat.
4. Lift out the mat (1) and remove the two nuts (5).
5. Pull the floor console (4) slightly rearward and disconnect the wire harness connector, if necessary.
6. Slide the floor console rearward and remove.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

1. Position the floor console (4) into the vehicle and connect the electrical connectors, if necessary.
2. Install the bolts (2) and tighten securely. Install the bolt covers (3).
3. Install the two nuts (5) and tighten securely.
4. Install the mat (1).
5. Install the inboard seat track covers, for both driver and passenger front seats.
