Grand Caravan And Voyager

REMOVAL

1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

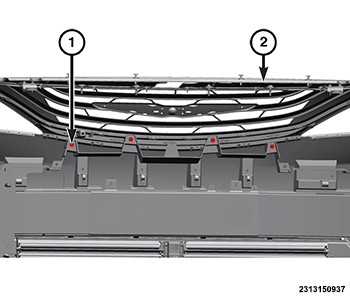

2. Remove the four screws (1) that secure the absorber to the grille (2).

   Courtesy of CHRYSLER GROUP, LLC

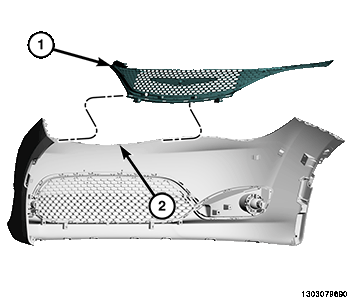

3. Release the retaining clips (2).
4. Remove the grill (1) from the front fascia.

   Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Align the grill (1) to the front fascia.
2. Insert the retaining clips (2) fully.

   Courtesy of CHRYSLER GROUP, LLC

3. Install the screws (1) that secure the grille (2) to the absorber and tighten securely.
4. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
