Glass Preparation - Installing A New Liftgate Glass

Courtesy of CHRYSLER GROUP, LLC

Position the liftgate glass (2) over the wiper shaft (5) and onto the liftgate.
Position liftgate glass in center of liftgate opening and resting on the guide pins (1)

Courtesy of CHRYSLER GROUP, LLC

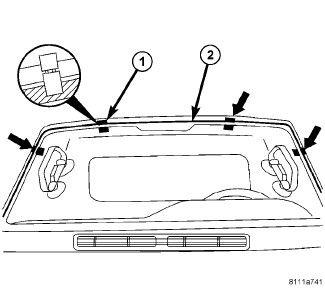

1 - TAPE

2 - WINDSHIELD FRAME
Apply adhesive tape strips (1) around the perimeter of the liftgate opening to aid in installation.
NOTE:
Windshield installation shown in illustration, liftgate similar.
Verify the liftgate gap is parallel to with the liftgate opening.
Cut tape with a sharp knife and remove liftgate.

Courtesy of CHRYSLER GROUP, LLC

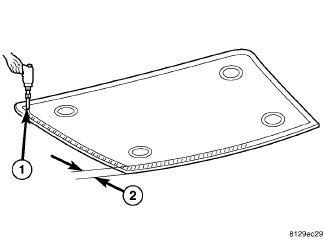

1 - PRIMER

2 - WINDSHIELD SEAL

NOTE:
Typical primer installation shown in illustration.
Clean and dry area of glass (2) to be re-glued with a suitable glass preparation solvent and rag.
Apply primer to gluing surface at liftgate seal.

Courtesy of CHRYSLER GROUP, LLC
Apply primer (1) around the perimeter of the glass to a width of 15 mm (0.5 in.) (2).
Allow primer to air dry for at least 10 minutes.
Using a flash light, verify that glass primer is without damage.
